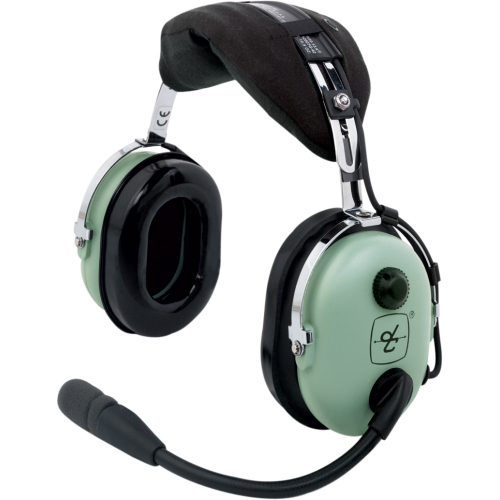

DAVID CLARK - Headset Microphone H10-13.4

Name: DAVID CLARK - Headset Microphone H10-13.4
Brand: DAVID CLARK
SKU: 40411G-01
Price: 577.981651 SGD
Availability: InStock

Model H10-13.4

Classic Comfort and Reliable Performance

The H10-13.4 is one of the best selling headsets in the aviation industry. Proven, reliable performance and remarkable comfort have made the H10-13.4 the top choice for thousands of pilots.

Non-returnable

SGD 577.98

Product Details

Expanded, super-soft, double foam head pad
Larger, yet lighter, undercut, Comfort Gel, ear seals
Universal flex boom for perfect microphone placement
Exclusive M-7A, the most advanced noise-cancelling microphone available
Low-profile volume control knob with detent settings
Molded cord assembly made to exceptional pull and flex standards
5-Year Warranty, backed by our industry leading Customer Service
FAA TSO Approved C-57b, C58a
Exceeds RTCA/DO-214 Standards
Weight (without cord assembly): 16.5 oz.
Certified Noise Reduction Rating - 23 dB

Specifications

ADDITIONAL INFORMATION

Weight

:
488 g
Ear coupling

:
Around-the-ear
Hardware

:
Steel
Earphone Plug

:
PJ-055 (.25” phone plug)
Mic Plug

:
PJ-068 (.206” phone plug)
Connection Cable

:
~ 5 ft. (1.5 m) straight cord
Dome type

:
ABS
Earphone Sensitivity

:
90 dB SPL on flat plate coupler with re 1mW input @ 1KHz
Earphone Type

:
Dynamic
Ear Impedance

:
150Ω (300 each; wired in parallel)
Ear Freq Response

:
200 – 5500 Hz
Microphone

:
M-7A Amplified Electret
Mic Impedance

:
50Ω +/- 20%
Mic Sensitivity

:
400mV+/-6dB into 150Ω load @ 1kHz for 114 dB SPL input
Mic Frequency Response

:
300Hz – 3.5KHz per RTCA DO 214
Mic DC Supply V.

:
8-16V not polarity sensitive
Source Resistance

:
470Ω
