Headsets Headset Microphone H10-13H

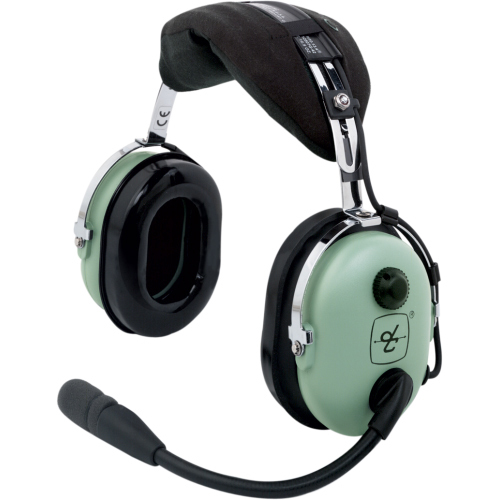

Headset Microphone H10-13H
Non-returnable
SGD 589.91
Share :
Product Details
Features and benefits
- Our best selling helicopter headset, based on the proven design of the H10-13.4 headset.
- Expanded, super-soft, double foam head pad
- Larger, yet lighter, undercut Comfort Gel ear seals
- Universal flex boom for perfect microphone placement
- Exclusive M-7A, the most advanced noise-cancelling microphone available
- Low-profile volume control knob with detent settings
- Molded cord assembly made to exceptional pull and flex standards
- Certified Noise Reduction Rating – 23 dB
- 5-foot extended coil cord and a single plug.
- Exceeds RTCA/DO-214 Standards
- Five-year warranty
- Made in USA
- FAA TSO Approved C-57b, C58a
Specifications
ADDITIONAL INFORMATION
- Weight:488 g
- Ear coupling:Around-the-ear
- Hardware:Steel
- Connector Type:U-174/U
- Connection Cable:~ 5 ft. (1.5 m) coil cord
- Dome type:ABS
- Characteristic SPL:~95 dB SPL (1 kHz and 1 mW) @ maximum volume nominal
- Contact pressure:~0.6 lb. (2.7 N)
- Total harmonic distortion (THD):< 1% – 110 dB SPL (300 – 3000 Hz)
- Transducer principle:Dynamic
- Ear Impedance:150Ω (300 each; wired in parallel)
- Ear Freq Response:200 – 5500 Hz
- Microphone principle:M-7A Amplified Electret
- Mic Impedance:50Ω +/- 20%
- Mic Sensitivity:400mV+/-6dB into 150Ω load @ 1kHz for 114dB SPL input
- Mic Freq Response:300Hz – 3.5KHz per RTCA DO 214
- Mic DC Supply V.:8-16V not polarity sensitive
- Source Resistance:470Ω
