Headsets DAVID CLARK - H10-56 Headset

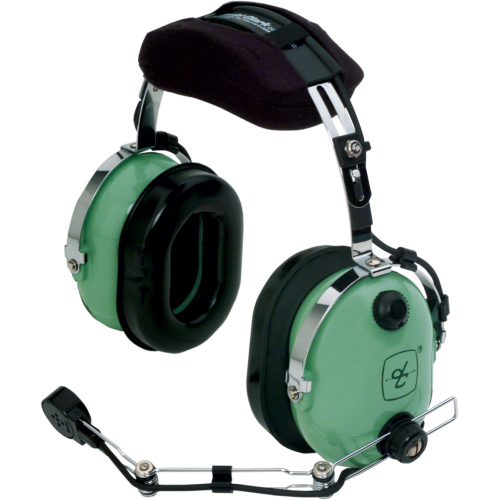

DAVID CLARK - H10-56 Headset
Non-returnable
Out of stock
SGD 610.09
Share :
Product Details
Features and benefits
- Our quietest passive noise-attenuating helicopter headset with built-in comfort
- Super-soft head pad
- Larger, yet lighter, undercut Comfort Gel ear seals
- Hinged wire boom with the M-101 amplified dynamic microphone
- Coil Cord (5-foot extended) with U-174/U Plug
- Molded cord assembly made to exceptional pull and flex standards
- Certified Noise Reduction Rating – 27dB
- Exceeds RTCA/DO-214 Standards
- Five-year warranty
- Made in USA
- FAA TSO Approved C57B
- NSN 5965-01-330-4042
Specifications
ADDITIONAL INFORMATION
- Weight:567 g
- Ear coupling:Around-the-ear
- Hardware:Steel
- Earphone Plug:U-174/U
- Mic Plug:U-174/U
- Connection Cable:~ 5 ft. (1.5 m) coil cord
- Dome type:ABS
- Earphone Sensitivity:90 dB SPL on flat plate coupler with re 1mW input @1KHz
- Earphone Type:Dynamic
- Ear Impedance:150Ω (300 each; wired in parallel)
- Ear Freq Response:200 – 5500 Hz
- Microphone principle:M-101 Amplified Dynamic
- Mic Impedance:150Ω
- Mic Sensitivity:400mV+/-6dB into 150Ω load @ 1kHz for 114dB SPL input
- Mic Freq Response:300Hz – 3.5KHz per RTCA DO 214
- Mic DC Supply V.:8-16V not polarity sensitive
- Source Resistance:470Ω
